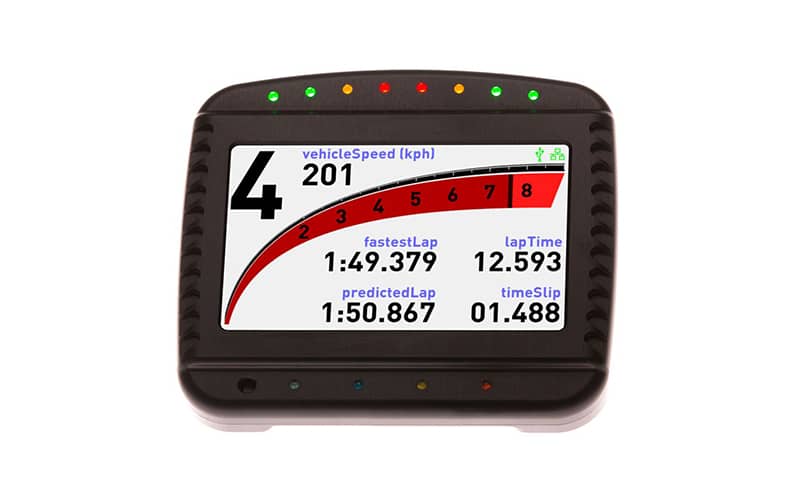

Life Racing D5 Dash

Call for price

The Life Racing D5 dash can be set up with either PC software or an external keypad controller.

Custom layouts, simple page navigation, and programmable driver aids, warnings, and alarms are all possible. Before programming, all functions can be simulated in software or by playing back data files (.LRD).

The Life Racing D5 Dash can receive streamed data from LR ECUs (F88, F90, etc) and record to USB sticks if required allowing it to be used as a fully featured central hub for a single connection point.

The D5 can be configured using PC software or by an external keypad controller. This allows custom layouts, easy page navigation and programmable driver aids, warnings and alarms. All functions can be simulated in software or by the payback of data files (.LRD) before programming.

All of this hardware is packaged within a lightweight CNC billet aluminium case. Designed to be installed in harsh Motorsport environments.

Life Racing D5 Dash Processing:

  • Powerful RISC CPU for advanced strategy execution

Display

  • WVGA ultra bright for daylight to dark with intelligent auto dimming

Inputs

  • 6 user configurable general purpose analogue sensor inputs
  • 4 user configurable switch inputs

Interfaces

  • 2 Gigabit full duplex Ethernet for configuration and data download
  • 2 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems
  • USB 2.0 for bulk data storage on USB stick

Memory

  • Unlimited USB logging memory
  • Ultra-fast data download via Ethernet
  • Time/Date stamped data via real-time clock

Power Supply

  • 6V to 80V input voltage range with reverse polarity protection
  • 1 regulated 5V sensor supply output with individual short circuit protection
  • 1 protected sensor ground connection

Physical

  • 50Way D-type connector
  • CNC machined, sealed IP67, black anodised aluminium case
  • Class leading slim profile for flat panel mounting
  • Maximum dimensions including the connectors are 140 x 123 x 31 mm
  • Total mass is ~395 grams

Available Upgrade Features

  • Pro Spec (USB Logging)

Get in touch for full Motorsport electronics systems packages. From wiring harness design and manufacture, though to setting up your Life Racing D5 Dash and the final ECU calibration...a true one stop shop for performance!
